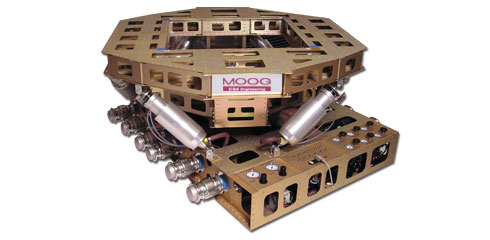

Isolation - HX-V500
| HX-V500 | |
|---|---|
| PURPOSE | Isolation |
| PAYLOAD MASS | Up to 225 kg |
| HEIGHT | 600 mm |
| DIAMETER | 1675 mm |
| RANGE | |
| x | ±25 mm |
| y | ±25 mm |
| z | ±20 mm |
| theta x | ±2.0 deg |
| theta y | ±2.0 deg |
| theta z | ±4.0 deg |
| RESOLUTION | |
| x | NA |
| y | NA |
| z | NA |
| theta x | NA |
| theta y | NA |
| theta z | NA |
| BANDWIDTH | NA |
| SUSPENSION FREQS. | <3.3 Hz |
| TEST PAYLOAD MASS | 90 kg |
| POWER | |
| Standby | 50 W |
| Peak | 50 W |
| Actuation | PN |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Camera image stabilization
- Stabilized weapons systems
- Optical jitter isolation
- Protection for fragile items during shipping
- Isolation of sensitive measurement equipment
- Vibration isolated measurements
