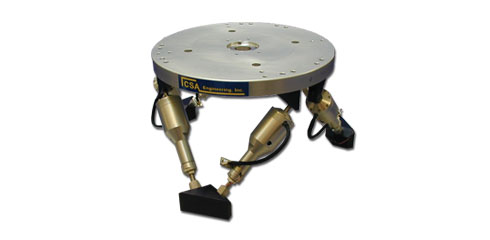

Isolation - HX-V100
| HX-V100 | |
|---|---|
| PURPOSE | Isolation |
| PAYLOAD MASS | Up to 2-20 kg |
| HEIGHT | 200 mm |
| DIAMETER | 215 mm |
| RANGE | |
| x | ±30 µm |
| y | ±30 µm |
| z | ±20 µm |
| theta x | ±0.05 deg |
| theta y | ±0.05 deg |
| theta z | ±0.05 deg |
| RESOLUTION | |
| x | 0.1 µm |
| y | 0.1 µm |
| z | 0.1 µm |
| theta x | 10 µrad |
| theta y | 10 µrad |
| theta z | 10 µrad |
| BANDWIDTH | 250 Hz |
| SUSPENSION FREQS. | 30-90 Hz |
| TEST PAYLOAD MASS | 2 kg |
| POWER | |
| Standby | 40 W |
| Peak | 60 W |
| Actuation | PZ |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Camera image stabilization
- Stabilized weapons systems
- Optical jitter isolation
- Isolation of sensitive measurement equipment
- Semiconductor manufacturing
- Vibration isolated measurements
- Tracking algorithm verification
