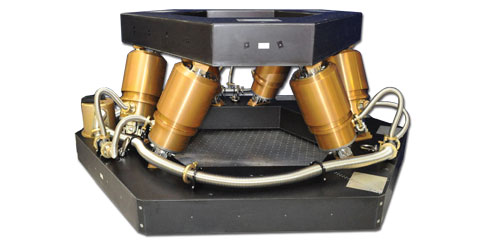

Pointing and Positioning - HX-P500
| HX-P500 | |
|---|---|
| PURPOSE | Pointing |
| PAYLOAD MASS | Up to 15,000 kg |
| HEIGHT | 810 mm |
| DIAMETER | 1850 mm |
| RANGE | |
| x | ±150 mm |
| y | ±150 mm |
| z | ±85 mm |
| theta x | ±7.5 deg |
| theta y | ±7.5 deg |
| theta z | ±13 deg |
| RESOLUTION | |
| x | 0.5 µm |
| y | 0.5 µm |
| z | 0.5 µm |
| theta x | 1 µrad |
| theta y | 1 µrad |
| theta z | 1 µrad |
| BANDWIDTH | 1 Hz |
| SUSPENSION FREQS. | > 40 Hz |
| TEST PAYLOAD MASS | 650 kg |
| POWER | |
| Standby | 0 W |
| Peak | 500 W |
| Actuation | MS |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Alignment of telescope optics
- Surgical systems
- End effector for serial manipulators
- Antenna or satellite dish pointing
