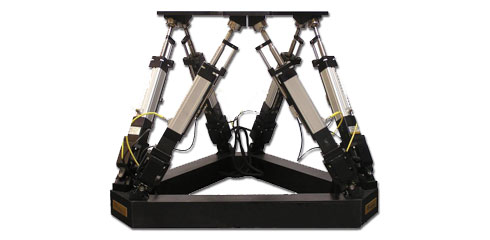

Pointing and Positioning - HX-P300
| HX-P300 | |
|---|---|
| PURPOSE | Pointing |
| PAYLOAD MASS | Up to 225 kg |
| HEIGHT | 635 mm |
| DIAMETER | 915 mm |
| RANGE | |
| x | ±100 mm |
| y | ±90 mm |
| z | ±60 mm |
| theta x | ±14 deg |
| theta y | ±13.5 deg |
| theta z | ±20 deg |
| RESOLUTION | |
| x | 50 µm |
| y | 50 µm |
| z | 25 µm |
| theta x | 100 µrad |
| theta y | 100 µrad |
| theta z | 150 µrad |
| BANDWIDTH | 10 Hz |
| SUSPENSION FREQS. | > 30 Hz |
| TEST PAYLOAD MASS | 20 kg |
| POWER | |
| Standby | 200 W |
| Peak | 1.25 kW |
| Actuation | MS |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Alignment of telescope optics
- Space vehicle docking system
- Munitions loading
- Assembly line positioning
- Surgical systems
- End effector for serial manipulators
- Antenna or satellite dish pointing
