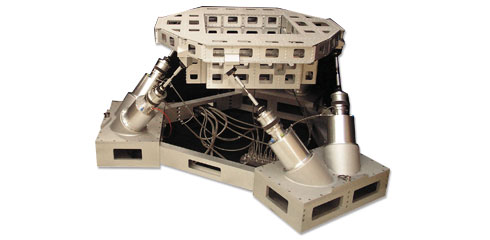

Isolation / Motion Simulation - HX-MV500
| HX-MV500 | |
|---|---|
| PURPOSE | Isolation / Motion Simulation |
| PAYLOAD MASS | Up to 180 kg |
| HEIGHT | 1000 mm |
| DIAMETER | 2100 mm |
| RANGE | |
| x | ±45 mm |
| y | ±45 mm |
| z | ±40 mm |
| theta x | ±2.5 deg |
| theta y | ±2.5 deg |
| theta z | ±5.0 deg |
| RESOLUTION | |
| x | 50 µm |
| y | 50 µm |
| z | 25 µm |
| theta x | 35 µrad |
| theta y | 35 µrad |
| theta z | 35 µrad |
| BANDWIDTH | 40 Hz |
| SUSPENSION FREQS. | <5 Hz |
| TEST PAYLOAD MASS | 90kg |
| POWER | |
| Standby | 200 W |
| Peak | 1.5 kW |
| Actuation | PN & EN |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Camera image stabilization
- Stabilized weapons systems
- Optical jitter isolation
- Protection for fragile items during shipping
- Isolation of sensitive measurement equipment
- Semiconductor manufacturing
- Vibration isolated measurements
- Tracking algorithm verification
- Flight simulators
- Missile tracker simulators
- Disturbance sources
