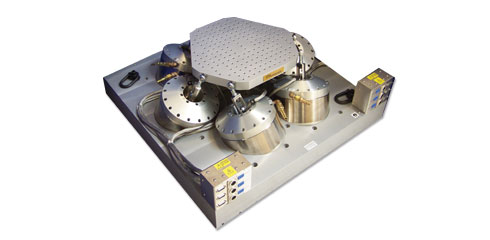

Motion Simulation - HX-M350
| HX-M350 | |
|---|---|
| PURPOSE | Motion Simulation |
| PAYLOAD MASS | Up to 180 kg |
| HEIGHT | 330 mm |
| DIAMETER | 914 mm |
| RANGE | |
| x | ±25 mm |
| y | ±30 mm |
| z | ±11 mm |
| theta x | ±2.5 deg |
| theta y | ±2.5 deg |
| theta z | ±6 deg |
| RESOLUTION | |
| x | 1 µm |
| y | 1 µm |
| z | 0.5 µm |
| theta x | 2 µrad |
| theta y | 2 µrad |
| theta z | 5 µrad |
| BANDWIDTH | 200 Hz |
| SUSPENSION FREQS. | NA |
| TEST PAYLOAD MASS | 30 kg |
| POWER | |
| Standby | 350 W |
| Peak | 3 kW |
| Actuation | EM |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Flight simulators
- Missile tracker simulators
- Simultaneous mulit-axis vibration testing
- Disturbance sources
