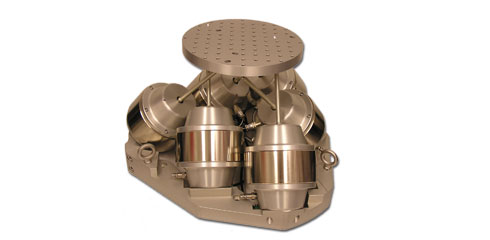

Motion Simulation - HX-M300
| HX-M300 | |
|---|---|
| PURPOSE | Motion Simulation |
| PAYLOAD MASS | Up to 50 kg |
| HEIGHT | 330 mm |
| DIAMETER | 564 mm |
| RANGE | |
| x | ±15 mm |
| y | ±15 mm |
| z | ±12 mm |
| theta x | ±7 deg |
| theta y | ±7 deg |
| theta z | ±12 deg |
| RESOLUTION | |
| x | 1 µm |
| y | 1 µm |
| z | 0.5 µm |
| theta x | 5 µrad |
| theta y | 5 µrad |
| theta z | 7 µrad |
| BANDWIDTH | 150 Hz |
| SUSPENSION FREQS. | NA |
| TEST PAYLOAD MASS | 3 kg |
| POWER | |
| Standby | 350 W |
| Peak | 1.5 kW |
| Actuation | EM |
| PZ- piezoelectric, EM- electromagnetic, MS- motor-driven screw | |
Literature
Applications
- Flight simulators
- Missile tracker simulators
- Simultaneous mulit-axis vibration testing
- Disturbance sources
