Standard Actuators

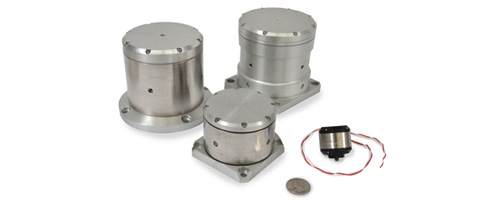

The SA1 and SA10 are standard products. All have a high ratio of force output to physical volume. Actuators are specified as SAx-f where x is the zero-peak continuous force output at high frequency in pounds and f is the primary resonant frequency in Hz. The actuators produce much larger forces at frequencies near resonance, and can be overdriven for limited durations at moderate duty cycles when there is opportunity for adequate heat dissipation.

Technical Highlights

  • 10-lbf output, 20-1000 Hz SA10
  • 1-lbf output, 20-1000 Hz SA1
  • Alternate output force levels SA-x
  • Customized versions of SA-x SA-xvn
